High Strength Monofilament Extruder Machine For HDPE Filament 7gpd 50kgh
Product Description:
1. Extruder: 1 set
(1) Screw diameter: 80mm, Rotation speed of screw: 0～80 rpm
(2) L:D: 30:1, Material of screw: 38CrMoALA ,
(3) RKC pressure automatic feedback system which can adjust the screw speed automatically.
(4) Material of barrel heater: Cast aluminium with stainless steel insulation layer.
(5) Metering pump, rotation speed: 0-45 rpm.
(6) Round spinneret: 1 set.
(7) Feeding zone should be with sight window and magnetic.
2. Cooling water tank: 1 set
(1) The tank is made by SS 304.
3. Seven roller stretching unit A
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel box with accurately grind gear makes the rollers run smoothly.
(3) Built-out oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.
4. Overflow type hot water tank: 1 set
(1) Tank size: 4000mm
(2) Electric heating pipe is in the tank.
(3) The tank is made by SS 304 with insulating layer.
(4) Water removal device: 2 sets with suction.
5. Seven roller stretching unit B
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.
6. Double layers hot blast stretching oven: 1 set
(1) Oven length: 4000 mm
(2) Heating power 23kw×2
7. Seven roller stretching unit C, with brake resistor
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.
8. Double layers hot blast stretching oven: 2 sets
(1) Oven length: 5000 mm
(2) Heating power 23kw×2
9. Seven roller stretching unit D.
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(4) Built-in oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.
10. Lubricating system: 1 set
(1) Frequency control of speed

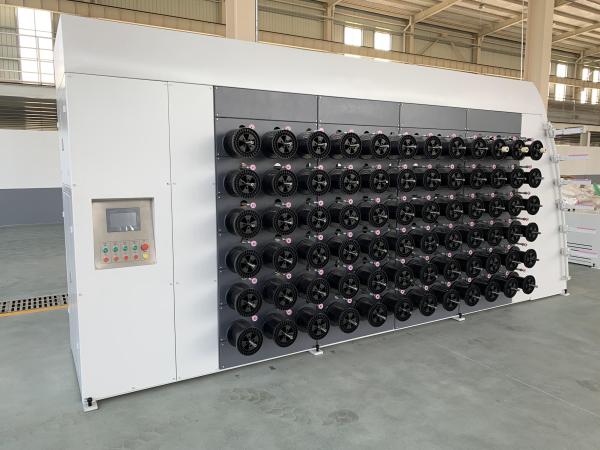

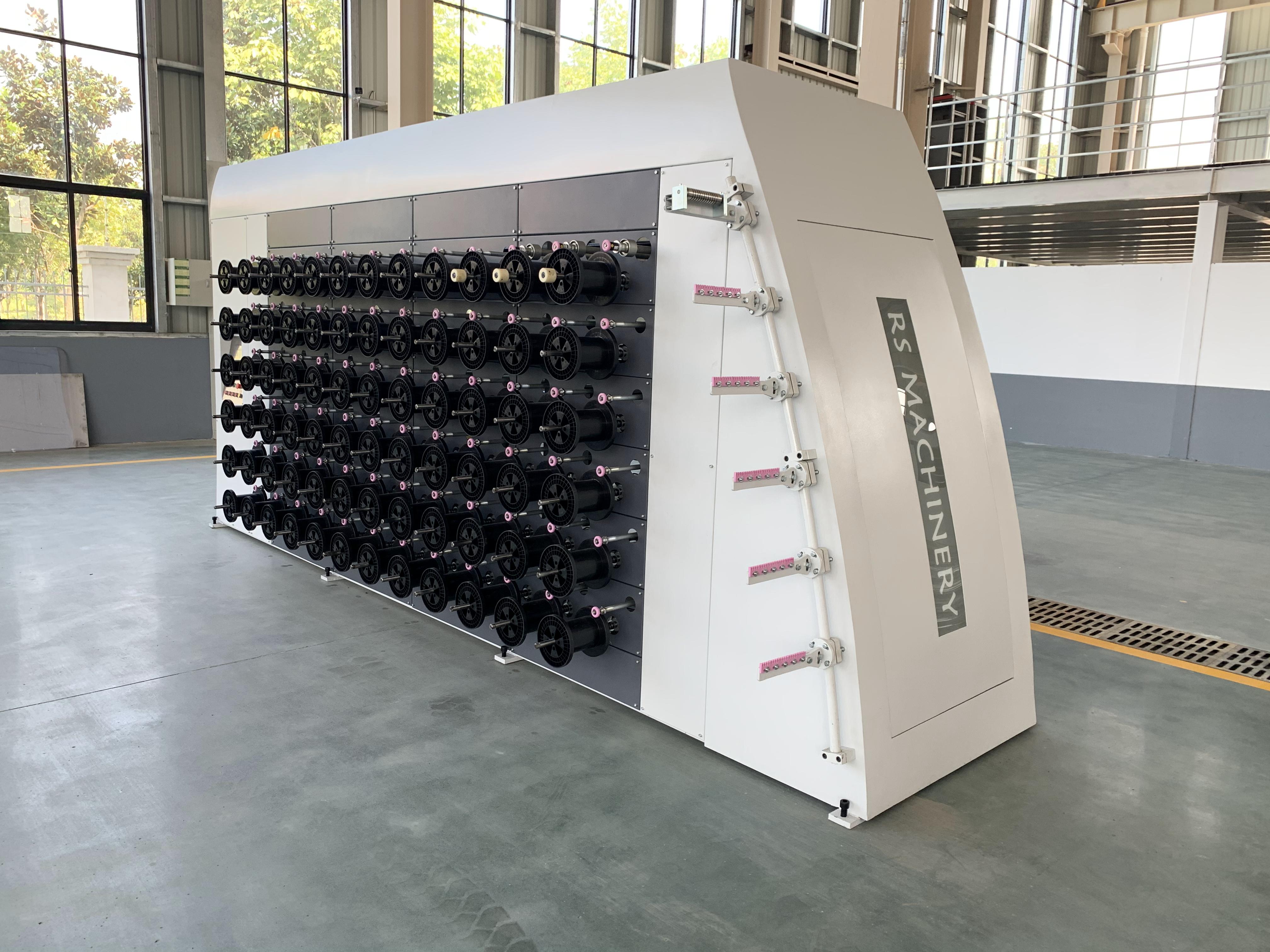

11. Spindle winder: 24 spindles
(1) Spool and bobbin are as sample.
(2) The frame transmission is frequency control, driving motor: 2.2kw
(3) The frame transmit by gear rack
12. Waster yarn collectors: 1 set
(1) Torque motor power: 80KG.cm
Parameter:
| Screw diameter | Φ80mm |
| Raw material | HDPE virgin | Filament size | 0.15-0.3mm |
| Capacity | 80Kg/H | Filament shape | round |
| Screw L:D | 33:1 | Stretching unit | 3 sets |
| Screw material | 38CrMoALA | Winder | 252 spindles |
| Max linear speed | 160m/min | Instillation power | 350Kw |
| Nozzle holes | 240 holes | Overall size | 52×2.5×2.9m |
